Chang Yih inverter manufacturer

C type (1/8HP)

  • C Type Motor Controller
  • Advantage: It works with PLC and adjust the Speed
  • In more than one motor reflexes, can make changes to recover from the main command together
  • several fast starts, stops to reduce mechanical lifting speed buffer travels smoothly.
  • Product Description
  • Product Specifications
Product Specifications

HP Horsepower 1/8 1/4 1/2 1 2 3 5 7.5 10
Phase Single Phase
Voltage 100/110V 200/220V
Rated Frequency 50/60Hz 50/60Hz
Output Voltage A H
1 2
0-80
VDC
DCO-195V
J K
3 4
100VDC DC200V
Speed
Variation Rate
Load speed changes Less Than 0.2%
Power supply voltage variation (±15%) Less Than 0.2%
Surrounding temperature variation (-10C-40C) Less Than 0.05%
Surrounding temperature variation (±3HZ) Less Than 0.1%
Start Buffer Device 0.8esc 0-30 sec SET at 0 Start at 0.8 sec
Limited Load Protection A Protection: The Speed is Reduced Automatically Whenever Overload occurs
and it stops running 3 sec After its Occurrence
Anti-jamming devices C Type Not applicable
Weight A Type 3.16kg  AB Type  1.6kg  B Type 1.265kg  C Type 0.4kg
Conditions Thmperature: Avoid direct sunlight
Thmperature: Less than 80% and with good ventilation
Dust: Avoid places that have too much dusts or metal articles.

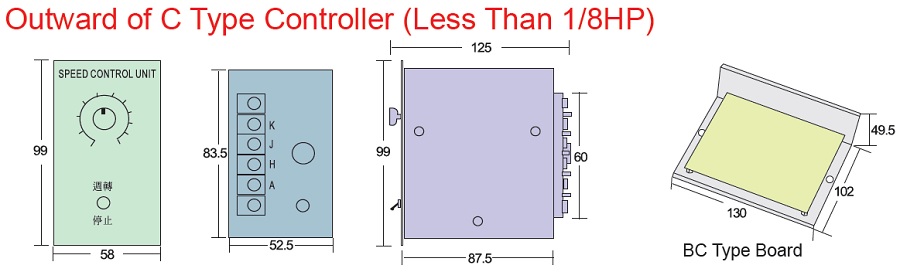

Appearance A Type > AB Type > B Type > C Type >
